10'x14' | 3,1mx4,3m | 3wo.left.sd2wv

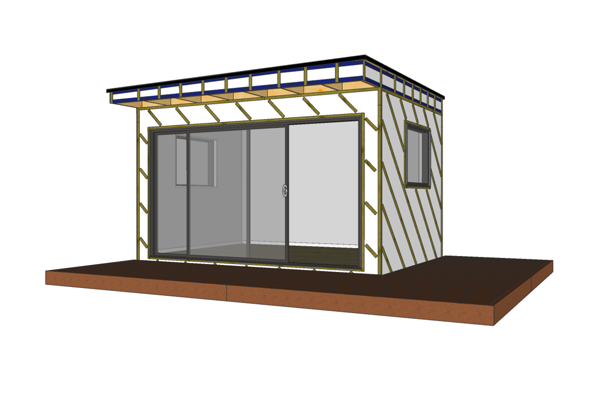

DIY detailed instructions and material list for 10'x14' (3,1mx4,3m) tiny house with one sliding door and two windows, vertical siding.
GARDOF instructions are in imperial measurements at this stage.
or 175 GARDOF (GardofToken)
Instruction specifics:
- Tools required and recommended

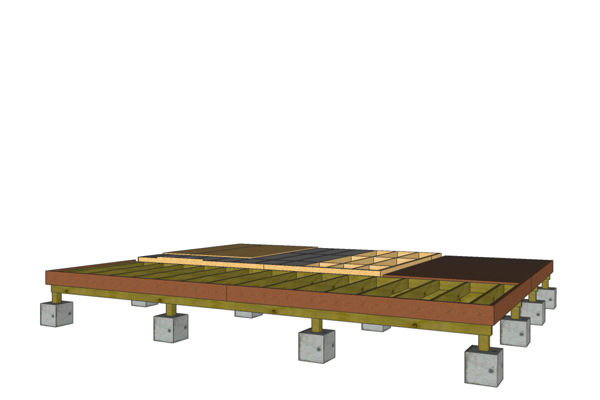

- Base is built with treated 4’’x 4’’ posts, treated double 2’’x 6’’ beams and treated 2’’x 6’’ frame for decking
- Flooring has 3/4’’ plywood and calibrated 2’’x 8’’ joists for R28 insulation
(can be changed to 2’’x 10’’ framing to install R40 insulation) - Walls have calibrated 2’’x 6’’ studs for R22 insulation (can be changed

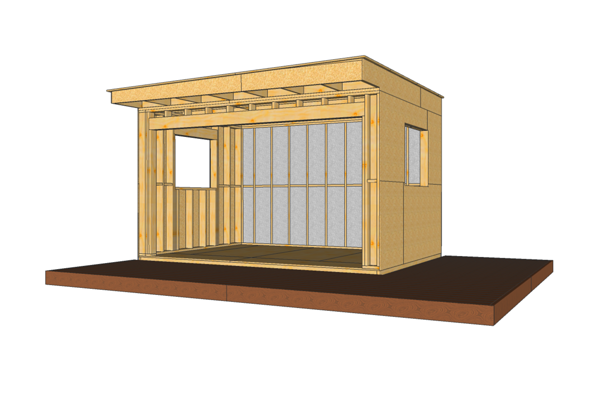

to 2’’x 4’’, 2’’x 8’’ or 2’’x 10’’, just have to adjust the bottom and top plate measurements) - Walls are covered with 3/8’’ OSB, building paper (Tyvek), rainscreen and siding

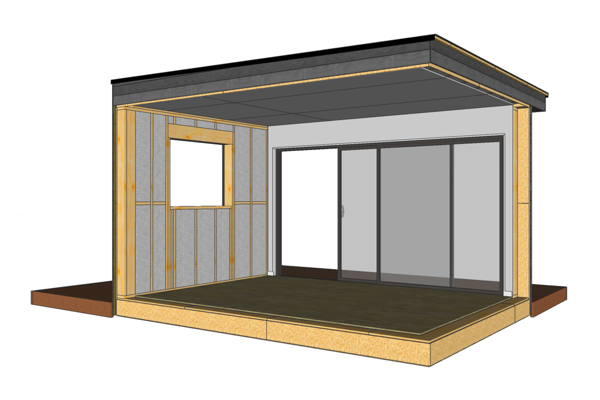

- Ceiling/roof has calibrated 2’’x 8’’ joists for R28 insulation (can be changed to 2’’x 10’’), added strips on top of the joists to create the required minimum angle (can create a bigger angle but not less) and covered with 3/4’’ plywood
- Roof has underlay, flashing and peel and stick roofing (you can use materials of your choice)
- Material list included is divided to sections, allows you to only order materials needed
